We subjected the Lenovo Legion Y90 to our rigorous SBMARK Display test suite to measure its performance Cons six criteria. In the results of this test, we will analyze how it fared in a variety of tests and several common use cases.
Overview
Main display specifications:
- 5.7-inch, 109.8 cm2 IPS LCD (~ 87.4% screen-to-body ratio)
- Dimensions: 11.1 x 6.02 x 2.83mm (0.44 x 0.24 x 0.11 inch)
- Resolution: 1080 x 2160 pixels, (~ 424 ppi density)
- Aspect Ratio: 18: 9
- Refresh rate: 60Hz
Pros
- Good readability in internal conditions
- Well-managed frame misalignments and vibration when playing video
- Fluidity, precision and quick touch response when playing video games
versus
- Unreadable in sunlight
- Poor video performance, especially in terms of brightness and colors
- Significant impact on screen color when using the blue light filter, making the device less easy to read in low light conditions
The Lenovo Legion Y90, marketed primarily as a gaming phone, delivered below-average display performance overall and in its Premium segment. Although the correct screen brightness made indoor use of the device comfortable, using the device outdoors showed the limitations of the display. Outside readability was very poor and the display was unreadable in sunlight.
The Lenovo Legion Y90 is not the ideal device for watching HDR10 videos due to the low display brightness and poor color rendering.
However, a bright spot for the Legion Y90 display was its touch performance, which helped deliver a very good gaming experience. Gamers are likely to appreciate the display’s touch latency, which was recorded at 41 milliseconds during testing, its good smoothness of touch, and its accuracy.
Test summary
Learn about SBMARK visualization tests: For scoring and analysis in our smartphone and other display reviews, SBMARK engineers perform a series of objective and perceptual tests in controlled laboratory and under real-life conditions. Please note that we evaluate display attributes using only the device’s built-in display hardware and related still image (gallery) and video apps with default settings. (For in-depth information on how we rate smartphones and other displays, see our articles, “How SBMARK Verifies Display Quality” and “A Closer Look at SBMARK Display Tests”.
The following section collects the key elements of our exhaustive tests and analyzes performed in SBMARK laboratories. Detailed performance evaluations in the form of reports are available upon request. Do not hesitate to contact us.
How the screen readability score is composed
Readability evaluates the ease and comfort with which users can read stationary content (photos and web) on the display under various real-life conditions. SBMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also carried out in real-life environments.
Readability indoors (1000 lux).
Left to right: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)
Readability in a sunlight environment (> 90 0000 lux).
Left to right: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola Edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)

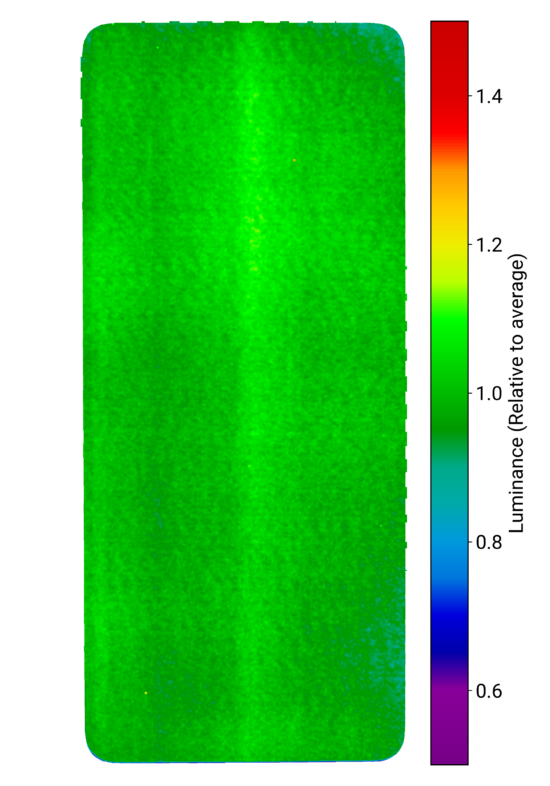

Measurement of luminance uniformity
This graph shows the uniformity of the display with a gray pattern of 20%. The more green the color is visible, the smoother the display.
How the Display Color score is composed
The color attribute evaluates the device’s ability to accurately reproduce colors. The measurements made are for fidelity, white point color and gamma coverage. We perform color assessments for different lighting conditions to see how well the device can handle color in its surroundings. Colors are measured using a spectrophotometer in a controlled lighting environment. The perceptual analysis of the color rendering is compared to the reference model displayed on a calibrated professional monitor.
White point under illuminant D65 at 1000 lux

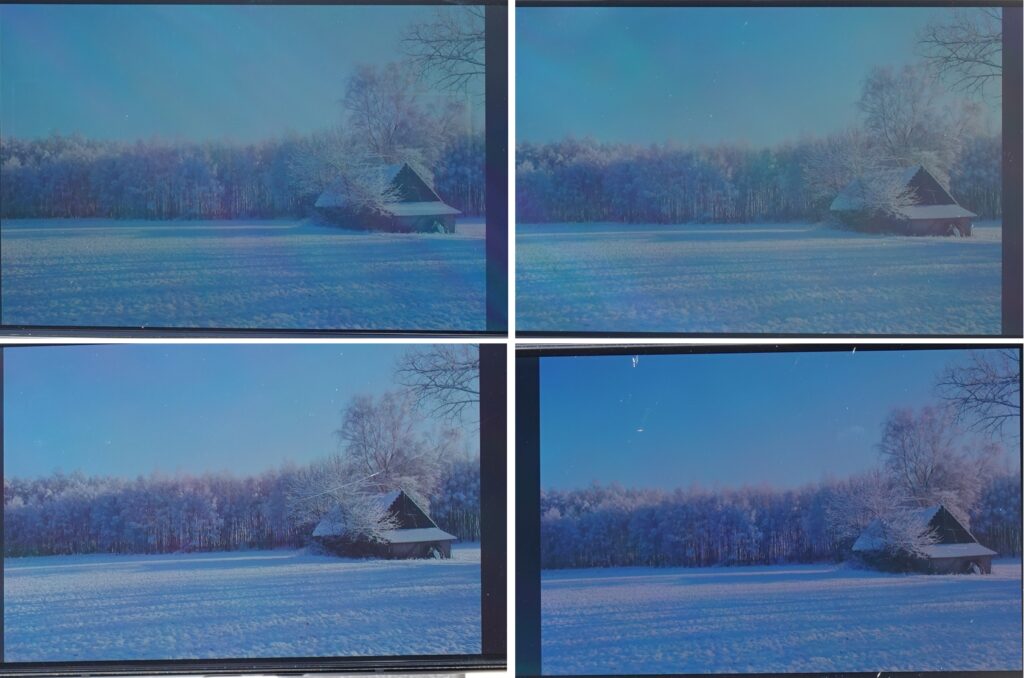

Indoor color rendering (1000 lux)
Clockwise from top left: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola Edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)
Color rendering in sunlight (> 90 0000 lux)
Clockwise from top left: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola Edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)

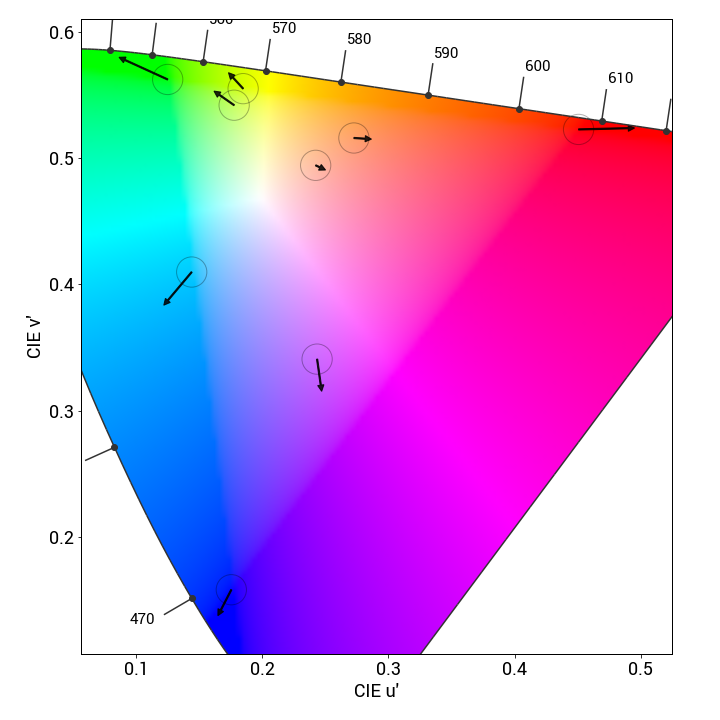

Color fidelity measurements
Lenovo Legion Y90, 1000 lux color fidelity in the sRGB color space
Lenovo Legion Y90, 1000 lux color fidelity in the DCI-P3 color space
Each arrow represents the color difference between a target color model (arrow base) and its actual measurement (arrowhead). The longer the arrow, the more visible the color difference. If the arrow stays inside the circle, the color difference will only be visible to trained eyes.

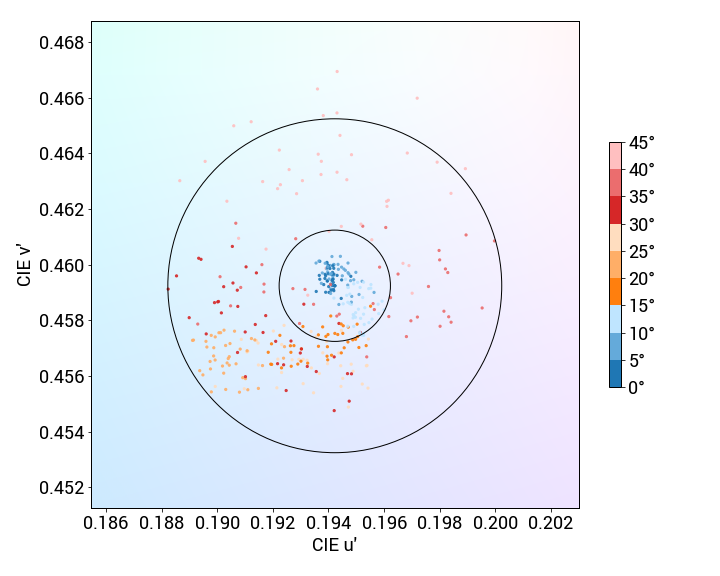

Behavior of the color on the corner
This graph shows the shift of color when the screen is tilted. Each point represents a measurement with a particular angle. The points inside the inner circle show no color change in the corner; those between the inner and outer circle have shifts that only trained experts will see; but those who fall outside the outer circle are noted.
How the Display Video score is composed
Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device indoors and in low light conditions. We measure the tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis Cons our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.

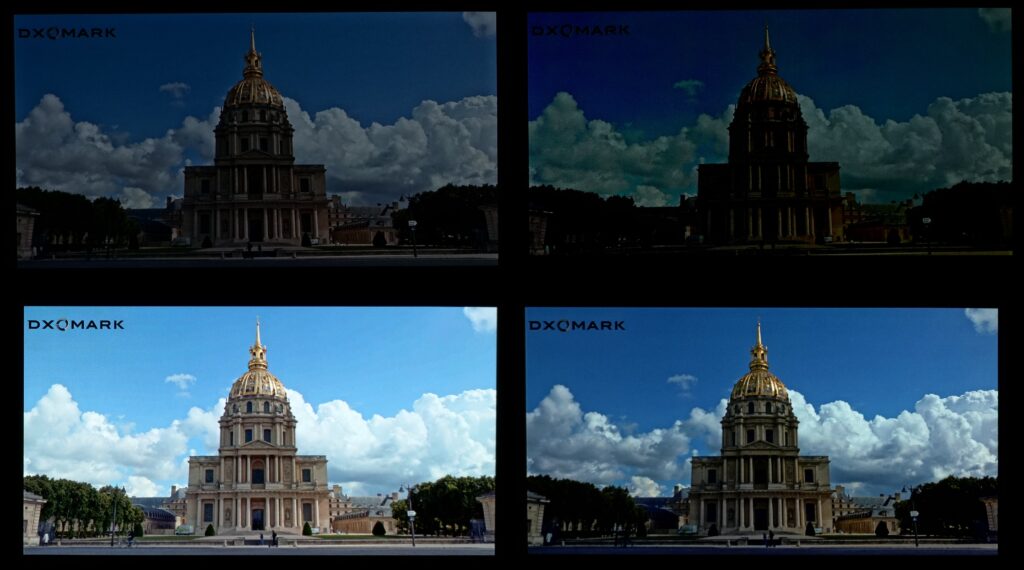

Video rendering in a low light environment (0 lux).
Clockwise from top left: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola Edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)

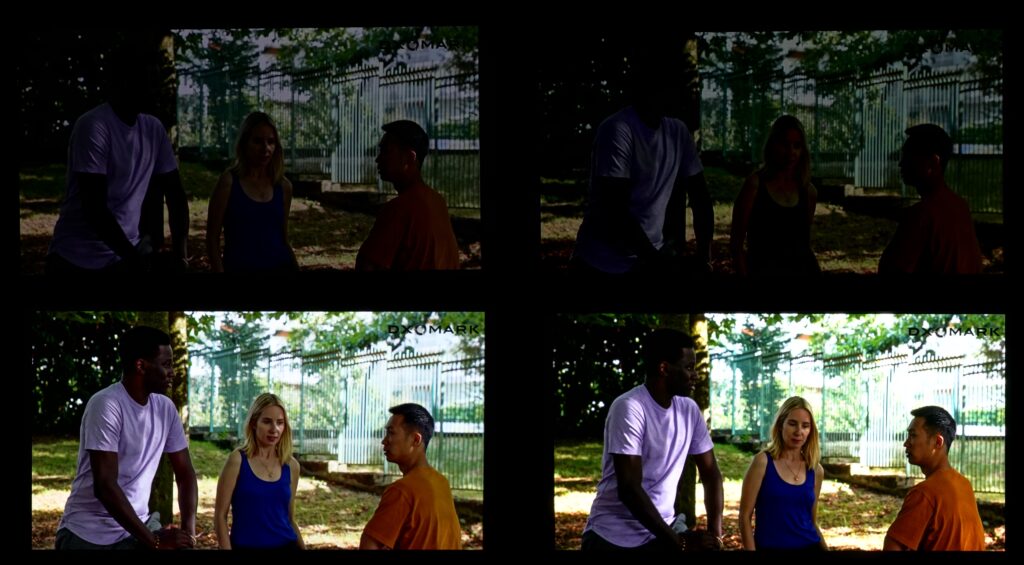

Clockwise from top left: Lenovo Legion Y90, Lenovo Legion Phone 2 Pro, Motorola Edge 30 Pro, Asus ROG Phone 5
(Photo for illustrative purposes only)
Range coverage for video content
Primary colors are measured in both HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the main color space of each video.
How the score of Display Motion is composed
The motion attribute evaluates the handling of dynamic content. Frame drops, motion blur, and playback artifacts are investigated using games and videos.
The video frame drops
These long exposure photos present the number of frame irregularities in a 30 second video. A good performance shows a regular pattern (a flat gray image or a drop-down pattern).
How the Display Touch score is composed
To evaluate touch, SBMARK uses a touch robot and a high-speed camera to reproduce and record a series of scenarios for the evaluation of fluidity, accuracy and response time.
This response time test accurately evaluates the time elapsed between the robot touching the screen and the displayed action. This test is applied to activities that require high responsiveness, such as play.
How the Display Artifacts score is composed
Evaluating artifacts means checking performance, image rendering, and motion defects that can affect the end-user experience. SBMARK accurately measures device reflectance and flickering and evaluates the impact of residual aliasing when playing video games, among other characteristics.
The measurements above show the reflection of the device within the visible spectrum range (400nm to 700nm). It includes both diffuse and specular reflection.
This graph represents the variation frequencies of the illumination; the highest peak gives the main flicker frequency.

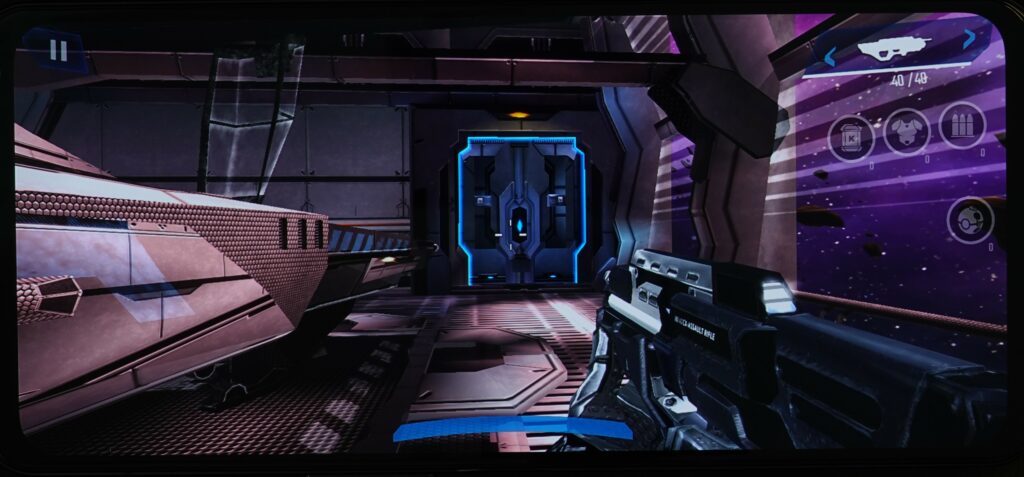

Alias (foreground)

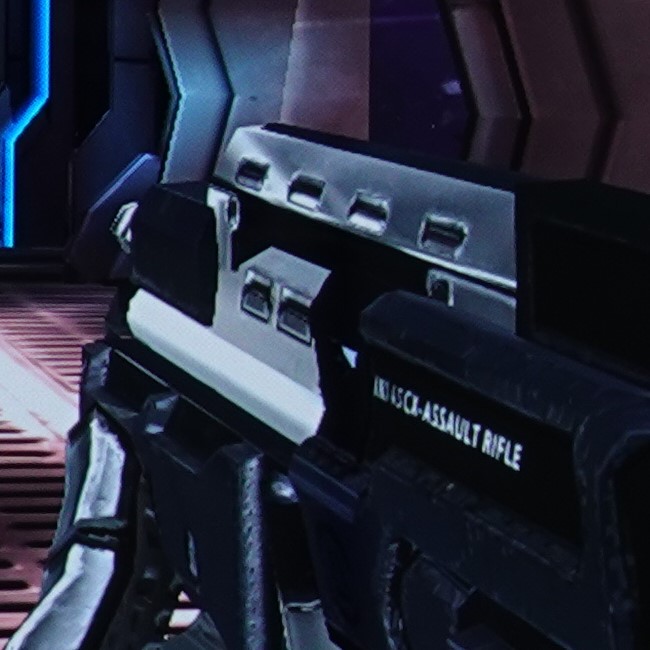

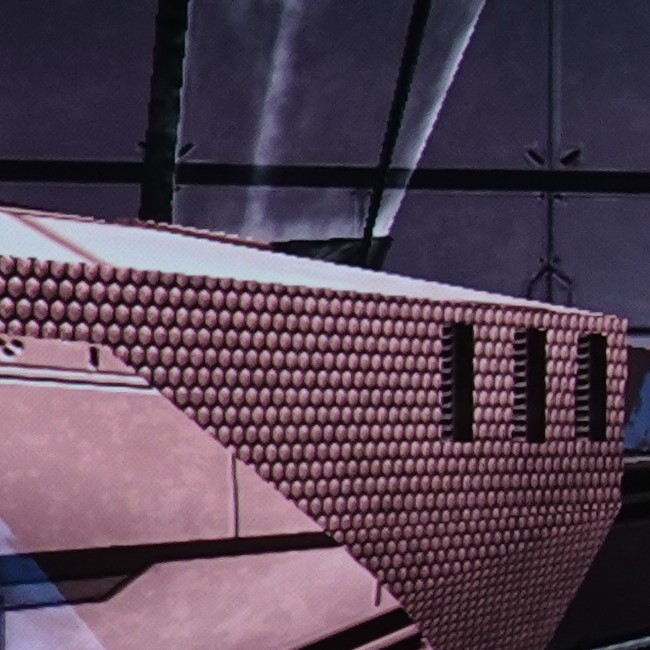

Lenovo Legion Y90 – Crop1
Lenovo Legion Y90 – Harvest 2
Lenovo Legion Y90 – Crop3
(Photo for illustrative purposes only)
